SHYODU Model 100 Gel Timer凝膠時間測定儀詳細介紹：
? ? ? ?SHYODU Model 100 Gel Timer凝膠時間測定儀可以輕松確定樹脂塑料、粘合劑、干燥油、雙組分彈性體、油漆和其他硬化液體在環境溫度下的凝膠時間-這是一個簡單的測試設備。一個低轉矩的同步電機旋轉測試樣品中的一個特殊形狀的攪拌器。當凝膠化發生時，阻力超過扭矩，從而停止齒輪電機和經過的計時器，并激活閃爍的LED。凝膠時間將以小時、分鐘和秒顯示在數字顯示屏上。即使電源開關關閉，測試時間也將一直顯示到重置。
? ? ? ? 將準備好的材料樣品倒入一次性紙杯中。通過旋轉O形圈支架中的紙杯，將紙杯放入裝置底座，直到完全就位，將一次性金屬絲攪拌器底部插入紙杯，并將頂部連接到驅動主軸，將計時器設置為“零”，然后打開裝置。當凝膠化發生時，讀取時間并丟棄杯子和攪拌器，凝膠定時器齒輪電機可以保持短時間停滯而不會造成傷害。
? ? ? ? 沒有混亂！不需要工具！不清理！
這種耐用的凝膠時間測定儀使用廉價的金屬絲攪拌器和紙杯。無需特殊技能，在美國設計和建造，可提供長期有用的實驗室或車間服務。
? ? ? ?SHYODU Model 100 Gel Timer凝膠時間測定儀技術參數：
最長記錄時間：9999小時59分59秒
最短記錄時間：1秒
攪拌速度：20rpm
準確度：±2%
電源要求：110v/60Hz或220V/50Hz
電氣連接：3線接地線組
尺寸：12英寸長x 10英寸高x 8英寸寬
運輸重量：6磅
DESCRIPTION

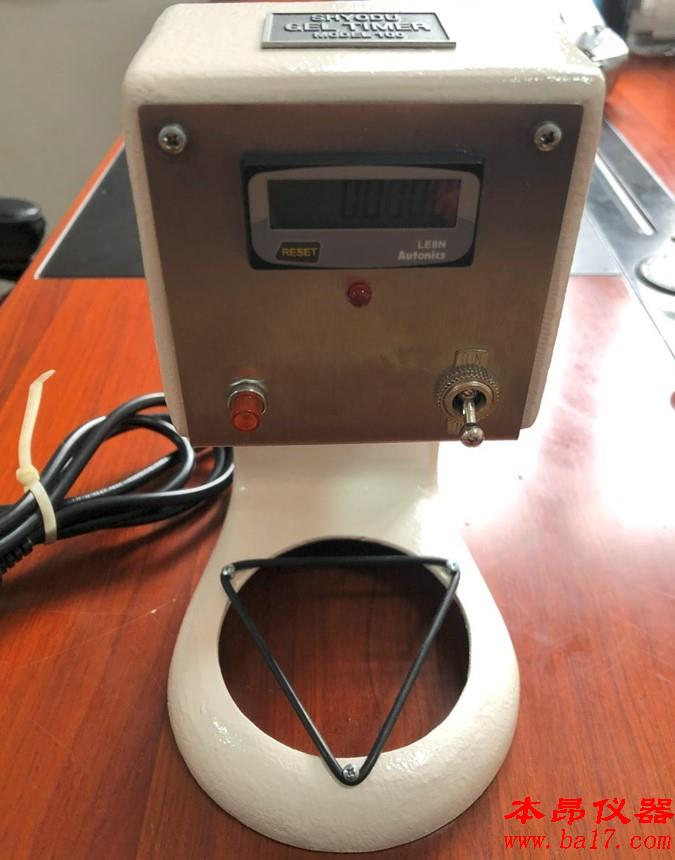

The Shyodu Gel Timer easily determines the gel time of resinous plastics, adhesives, drying oils, two-component elastomer, paints and other hardening liquids at ambient temperatures- A simple device for a simple test. A low-torque, synchronous motor rotates a specially shaped stirrer in the test sample. As gelation occurs, drag exceeds torque, which stops the gearmotor and elapsed timer and activates a flashing LED. Gel Time will be shown in hours, minutes and seconds on the digital display. The test time will remain displayed until reset, even when the power switch is turned off.
SIMPLE TO OPERATE

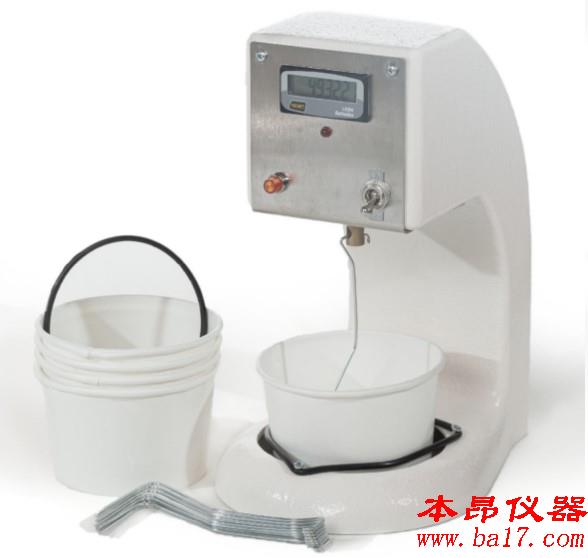

Pour the prepared material sample into the throwaway paper cup. Place the paper cup into the base of the unit by rotating the cup in the O-ring holder until seated completely, insert the throwaway wire stirrer bottom into the cup and attach the top to the drive spindle, set the elapsed timer to "zero" and switch on the unit. When gelation occurs, read the time and discard the cup and stirrer, The Gel Timer gear motor can remain stalled for short periods without harm.
NO MESS! NO TOOLS REQUIRED! NO CLEANUP!
This durable gel timer uses inexpensive wire stirrers and paper cups. No special skills are required, Designed and constructed in the USA to offer long and useful laboratory or shop service.
SPECIFICATIONS:
Maximum recording time: 9999 hours, 59 minutes, and 59 seconds
Minimum recording time: 1 second
Stir speed: 20rpm
Accuracy: ±2%
Electrical requirements: 110v/60Hz or 220V/50Hz
Electrical connection: 3-wire grounded cord set
Dimensions: 12" L x 10" H x 8" W
Shipping Weight: 6 pounds
